Brackley Single Element Wing

Made to order, please allow lead time of 6-8 weeks from purchase.

Introducing the Brackley Wing – the ultimate solution for time attack builders who demand top-tier aerodynamic performance and flexibility.

Key Features

Wide-Range Aerodynamic Efficiency
The Brackley Wing is engineered to deliver exceptional aerodynamic efficiency across a wide range of adjustments. Unlike other wings optimised for a single condition, the Brackley maintains high performance at all adjustment points, making it ideal for fine-tuning on the track.

3D Aerofoil Shape

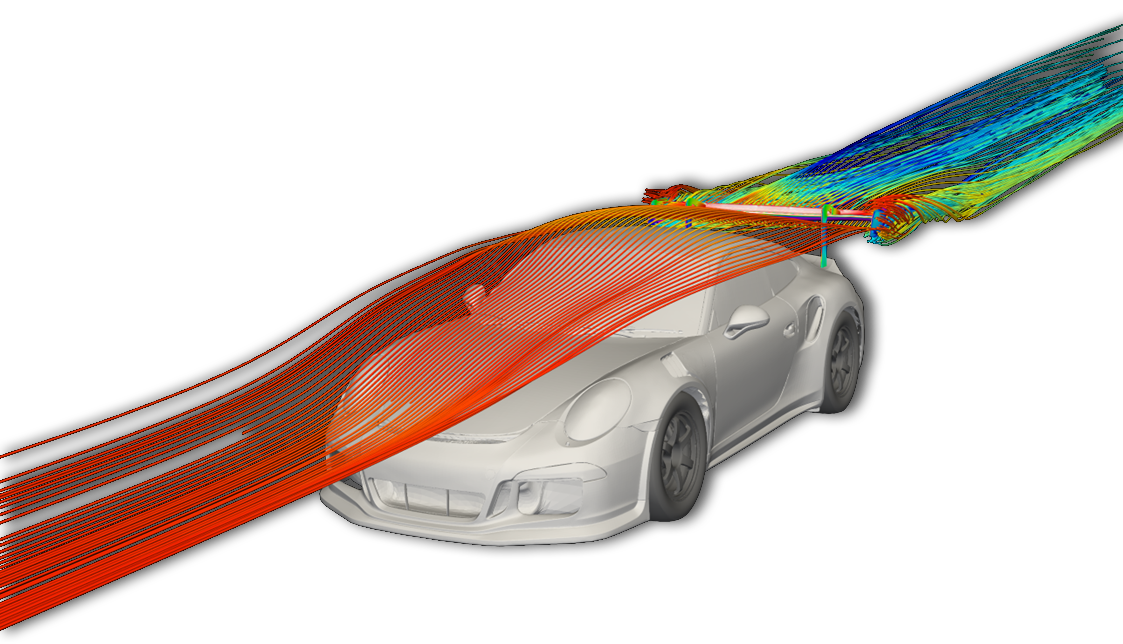

The wing's 3D shape is meticulously crafted to utilise the downwash from the cabin, ensuring optimal pressure distribution. This design enhances the interaction with the top and rear of the boot, while the outboard sections perform exceptionally well in freestream conditions, reducing flow losses and separations.

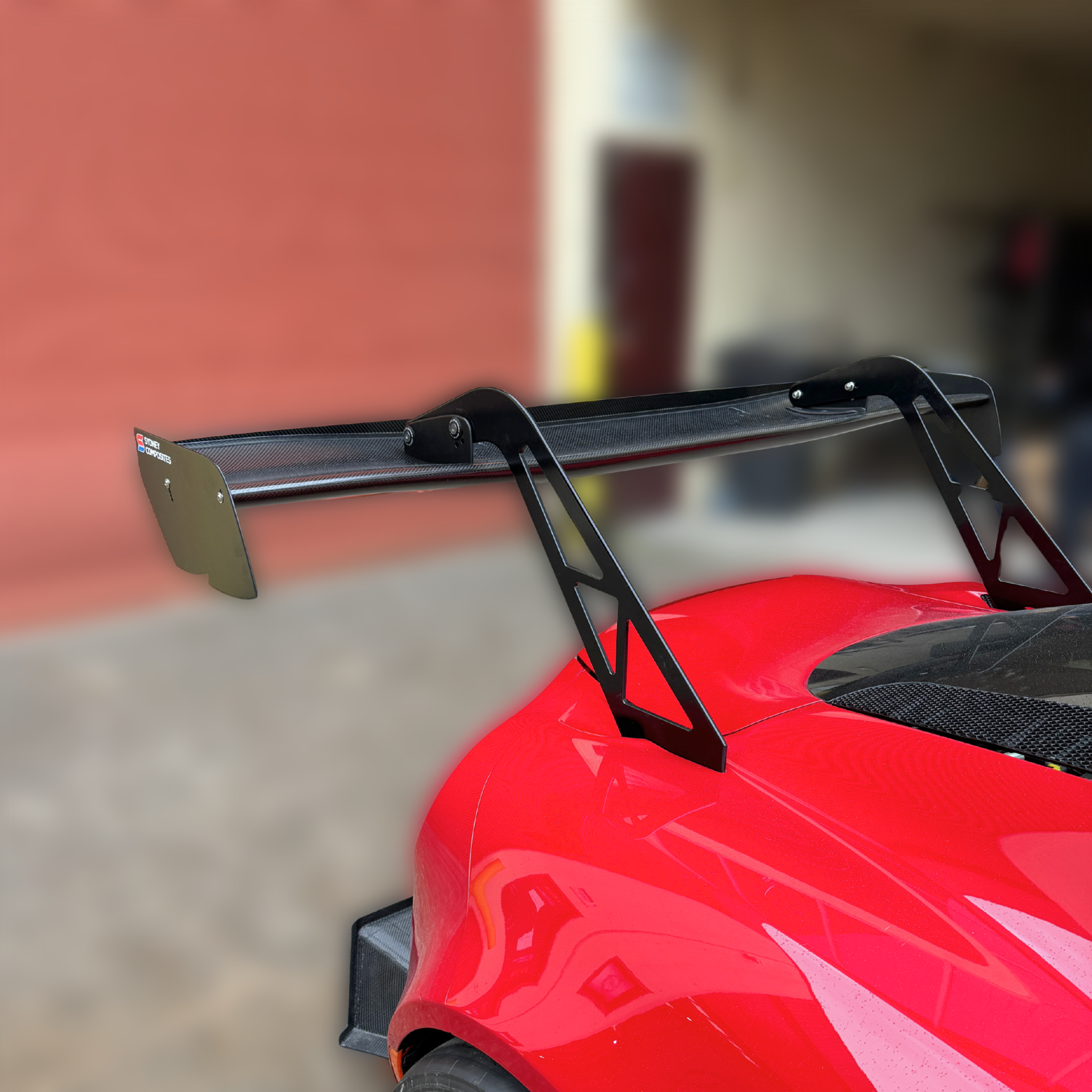

Swan Mount Efficiency
Available exclusively in a swan mount, the Brackley Wing minimises aerodynamic losses with mounts that feature rounded leading edges and smoothly tapered trailing edges, ensuring maximum efficiency.

Versatile mounting with four locations available.

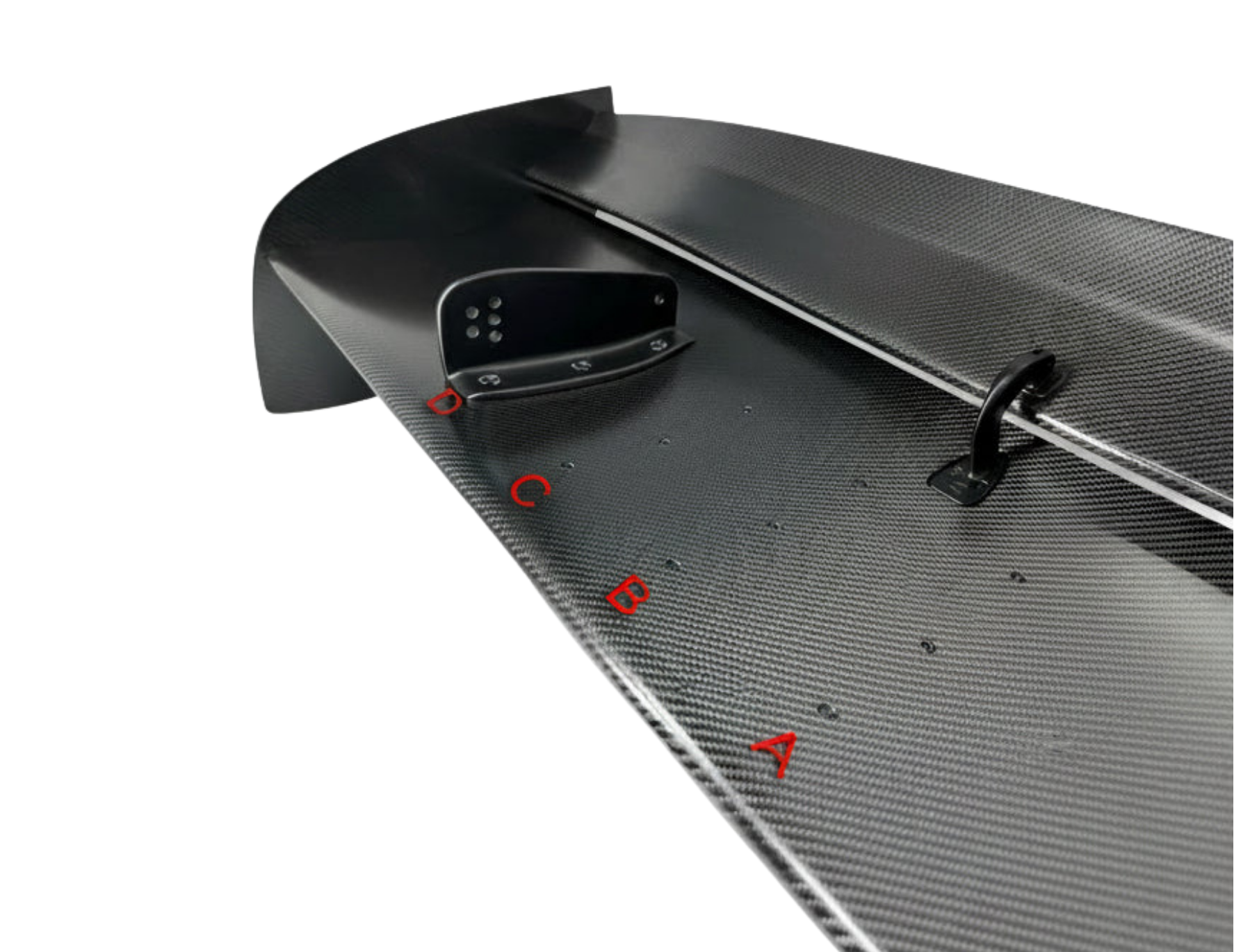

Choose which mount is best suited using outer face measurements as follows:

Mount A - 630mm

Mount B - 830mm

Mount C - 1030mm

Mount D - 1230mm

Disclaimer: Mounts are specific to locations due to the 3D surface, use of incorrect mount can cause damage and even failure to wing.
